Product Description
Working principle of vacuum lifter:
The vacuum chuck is connected to the vacuum equipment (such as vacuum pump) through the guide pipe, and then it contacts the workpiece to be lifted (such as glass, steel plate, etc.), starts the vacuum equipment suction, so as to generate negative pressure in the chuck, so that the workpiece to be lifted can be absorbed firmly, and then the workpiece to be lifted can be moved.When the workpiece to be lifted to the destination, through the hand slide valve, make the vacuum chuck from negative pressure to zero pressure or slightly positive pressure, the vacuum chuck will be removed from the workpiece to be lifted, thus completing the task of lifting the moving parts.
Main parameters of glass vacuum lifter
product&model | size | sucker diameter | sucker number | power system | control model | saftey loading | dead load |
HN-NE400-6S | 200*1000MM | 200mm | 6 | 380/DC12V | electric/manual | 400kg | 100kg |
HN-NE600-8S | 200*1000MM | 200mm | 8 | 380/DC12V | electric/manual | 600kg | 100kg |
HN-NE800-10S | 250*1000mm | 200mm | 10 | 380/DC12V | electric/manual | 800kg | 120kg |
HN-NE1000-6S | 200*1000mm | 300mm | 6 | 380/DC12V | electric/manual | 1000kg | 150kg |
HN-NE1500-8S | 200*1000mm | 300mm | 8 | 380/DC12V | electric/manual | 1500kg | 180kg |
HN-NE2000-10S | 250*1000mm | 300mm | 10 | 380/DC12V | electric/manual | 2000kg | 250kg |
Selection of vacuum spreader:
1, the quality of the pieces to be moved: determine the size and number of suction cups
2. Shape and surface state of the parts to be moved: select the type of chuck
3. Working environment (temperature) of the moving parts: select the material of the suction cup
4. Surface height of the removed parts: determine the buffer distance
5. Basic connection mode of suction cup: suction cup, suction cup seat, suction cup rod, spring, sliding sleeve, spring

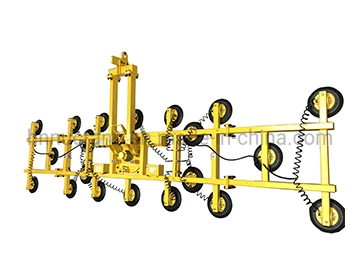

Detail parts of glass vacuum lifter
Advantages of vacuum spreader:
Save time, labor and cost, easy to use;Small and light, single operator, non-destructive moving parts, imported oil-free vacuum pump, no need of external power supply;Ergonomic design, sound and light alarm system, energy storage device, high safety, long service life and other characteristics;Cooperate with driving to form a complete lifting and handling solution;
Vacuum spreader widely used:
Glass processing, glass loading and unloading, glass curtain wall, plastic plate, sandwich plate, composite plate, steel plate, aluminum plate, copper plate, stone, etc.Suitable for all kinds of workpieces with smooth and compact surface and regular shape.
Electric glass vacuum suction cups package
