Basic Info.
Model NO.
H-UW20
Frequency Range
High Frequency
Electric Current
AC
Style
Vertical
Power
Ultrasonic
Frequency
20kHz
Generator
Digital Type
Deliver Time
7 Working Days
Ultrasound Wave
Continuous / Intermittent
Horn Size
110*20mm / 200*20mm
Customization
Acceptable
Transport Package
Export Stanard Case
Specification
2000W
Trademark
Hanstyle
Origin
China
HS Code
8543709990
Production Capacity
5000PCS/Year
Packaging & Delivery
Package Size
80.00cm * 50.00cm * 60.00cm
Package Gross Weight
35.000kg
Product Description

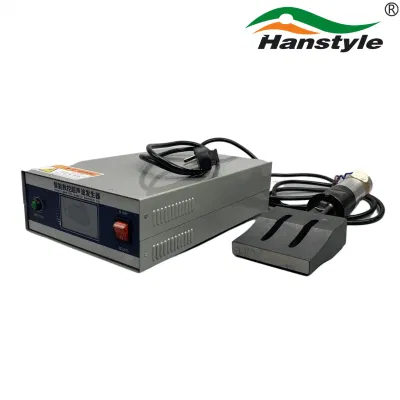

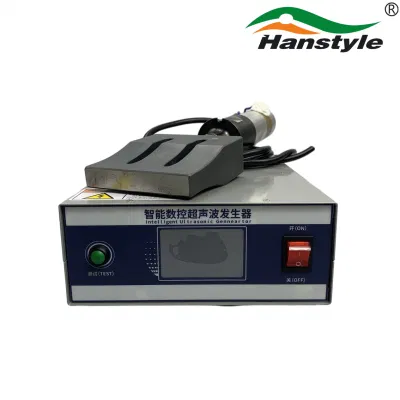

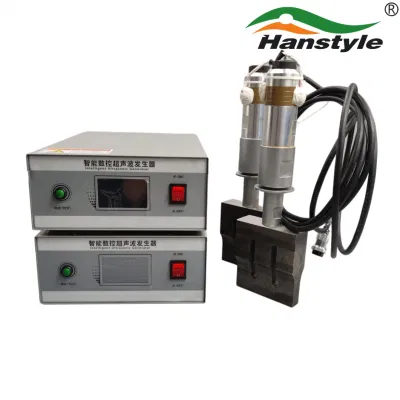

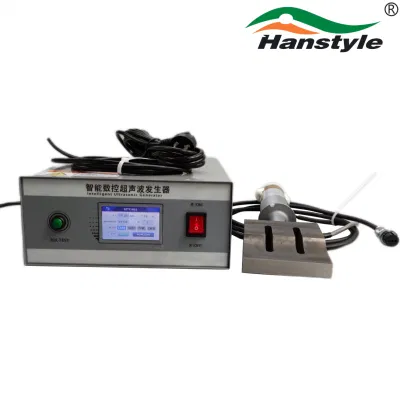

High Quality Fast Speed 20KHz Ultrasonic Welding Device For Plastic Welding Machine
Ultrasonic welding is the principle of fusion between the surfaces of two objects to be welded to form molecular layers by friction with each other. Ultrasonic welding is the conversion of 50/60 Hz current into 15, 20, 30 or 40 KHz electrical energy by means of an ultrasonic generator. The converted high-frequency electrical energy is again converted into high-frequency vibrations of tens of thousands of times per second through the transducer.
The welding head transmits the received vibration energy to the joint of the workpiece to be welded. In this area, the vibration energy is converted into heat energy by friction, and the surface of the object to be welded is melted to complete the effective bonding. Nowadays, ultrasonic welding is widely used in many industrial production fields.
The welding head transmits the received vibration energy to the joint of the workpiece to be welded. In this area, the vibration energy is converted into heat energy by friction, and the surface of the object to be welded is melted to complete the effective bonding. Nowadays, ultrasonic welding is widely used in many industrial production fields.

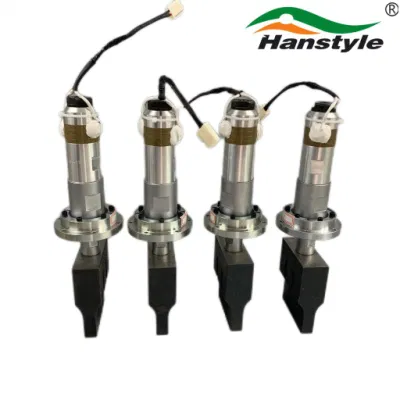

| Ultrasonic Transducer | Ultrasonic Generator | |
| Model | H-5020-4Z | H-UW20 |
| Ultrasonic Frequency | 20KHz ± 0.5KHz | 20KHz ± 0.5KHz |
| Ultrasonic Power | 2000Watt | 2000Watt |
| Ultrasound Wave | - | Continuous / Intermittent |
| Capacitance | 11000±10%pF | |
| Resistance | ≤10Ω | |
| Storage Temperature | 75ºC | 0~40ºC |
| Working Area | -5ºC~ | -5ºC~ 40ºC |
| Size | 110*20mm | |
| Weight | 8Kg | 9Kg |
| Power Supply | - | 220V, 50/60Hz, 1 Phase |
Because of the fast, efficient, clean and firm characteristics, ultrasonic welding has quickly won the favor of all walks of life, and is widely used in medical equipment industry, automobile industry, home appliance manufacturing industry, packaging industry, electronics industry, etc. For example, medical products such as liquid medicine filters, infusion sets, masks, oxygen bags, blood bags, automobile interior parts such as car bumpers, fuel tank caps, front and rear doors, lamps, and headlights, and household appliances that are closely related to our daily life. Plastic parts, the sealing of hoses in the packaging industry, special packing tapes, coffee cups, various lunch boxes, paper cups, etc., can achieve perfect, efficient and seamless welding with the efficient assistance of ultrasonic waves.
1.Energy saving and environmental protection.
2.It is more convenient than traditional welding, with fast cooling and smoke-free.
3.High efficiency and low cost. Ultrasonic welding not only saves raw materials, but also improves productivity.
4.Convenient completion of automatic operation.
5.Good and stable welding effect. Ultrasonic can complete seamless welding and reduce the welding interface.
6.The welding edges are beautiful, can complete seamless welding, and have good waterproof and sealing performance.
2.It is more convenient than traditional welding, with fast cooling and smoke-free.
3.High efficiency and low cost. Ultrasonic welding not only saves raw materials, but also improves productivity.
4.Convenient completion of automatic operation.
5.Good and stable welding effect. Ultrasonic can complete seamless welding and reduce the welding interface.
6.The welding edges are beautiful, can complete seamless welding, and have good waterproof and sealing performance.
