Basic Info.
Model NO.
HY-1513B-7
Certification
CE
Screw
Single-Screw
Spindle Number
Single-Spindle
Precision
Precision
Plastic Processed
NA
Cutting Machine Type
NA
Max stitch length
9mm
Transport Package
Normal Carton
Specification
1CBM
Trademark
HONYU
Origin
Zhongshan
Product Description
WALKING FOOT LEATHER SEWING MACHINE, HEAVY DUTY SEWING MACHINE FOR SOFA
HY-1513B-7 Direct drive, single needle compound feed sewing machine with auto trimmer
Product Description:
1. Internal direct drive servo motor, pneumatic controller components and independent electric control box are more stable.
2. Equipped with auxiliary threading device realizes automatic on-line, the line is transmitted through the pipeline, which greatly reduces the instability of the line caused by the winding of the noodle thread.
3. Standard DL function, effectively reduce dense needles, broken thread, broken skin problem during climb over thick spots.
4. Stable functions of auto trimming, auto back tacking, pneumatic presser foot lifting, auto oil supply, integrated LED light and other practical functions.
5. Targeted feeding structure and thread take-up structure can play the most suitable sewing performance from thin to thick car seat materials.
Typical Field of Application:
Normal sewing process for car interior.
Product Advantages:
1. Auxiliary threading device: Equipped with a auxiliary threading device realizes automatic on-line, the line is transmitted through the pipeline, which greatly reduces the instability of the line caused by the winding of the noodle thread.

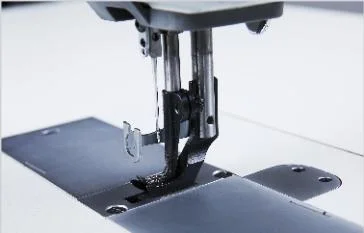

2. DL Function:
1) Transform the maximum presser foot alternation 6.5mm by one-click.
2) When the sewing reaches the position between up and down step, pressing the DL switch can transform instantaneously maximum internal and external presser foot alternating amount.
3. Superior sewing ability:
1) The most suitable sewing performance can be exerted for the sewing of car seat cushions from thin materials to thick materials.
2) Use needle of #18-#19 to prevent the bottom thread from breaking.
3) Sew with low tension without increasing the burden on the fabric.
COMPANY HONOR
EXHIBITION DISPLAY
HY-1513B-7 Direct drive, single needle compound feed sewing machine with auto trimmer
| Model No. | HY-1513B-7 |
| Feeding system | Alternating presser foot, feed dog and needle feeding |
| Max sewing speed | 2500 s.p.m |
| Shuttle diameter | Ф28mm |
| Applied needle | DP×17 #18-#23 |
| Thread size | Maximum thread 9 strands nylon |
| Max stitch length | 9mm |
| Max alternating presser foot | 6.5mm |
| Max presser foot lifting height | 16mm |
| Auto trimming | √ |
| Auto back tacking | √ |
| Presser foot lifting height by air | √ |
| Auto oil system | √ |
| DL function | √ |
| Operation space | 255×103mm |
