Basic Info.
Model NO.
GH-6030AES+SF-6040E
Type
Sleeve Shrink Packaging Machine
Driven Type
Electric
Application
Beverage, Food, Medical, Chemical, Textile, Electrical & Electronics, Apparel, Accordion Masking Tape and BOPP Tapes
Automatic Grade
Automatic
Inclusion Degree
Sleeve Shrink Packaging Machine
Structure
Sleeve Shrink Packaging Machine
Film Frame Structure
Sleeve Shrink Packaging Machine
Series
Sleeve Shrink Packaging Machine
Certificate
CE & ISO
Power Supply
20kw 220V/380V 3p 50/60Hz
Packing Speed
15m/Min
Machine Size
2160×1333×1703mm
Blade Length
670mm
Application Industry
adhesive Tapes Wrapping
Transport Package
Solid Wooden Box
Specification
2160× 1333× 1703mm
Trademark
SURFON/KUKO
Origin
Shanghai
HS Code
4020303090
Production Capacity
110set/Mons
Packaging & Delivery
Package Size
216.00cm * 133.00cm * 170.00cm
Package Gross Weight
620.000kg
Product Description

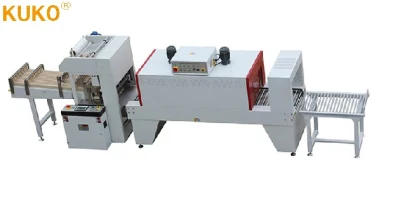

- GH-6030AES+SF-6040E Fully-auto Accordion Masking Tape Sealer & Shrink Tunnel adopts the unique linear design and compact structure. It is very suitable for accordion type tapes packing. and don't need to adjust the forward direction packing. What's more, there is no length limits;
- It can work independently and also can connect with the production line to realize the unmanned assembly line with the function of auto feeding, film wrapping, sealing, shrinking, cooling and stereotypes.
- The foreign advanced technology and production process make sure the stable performance.
- Siemens "PLC" programmable process controller makes it achieve the mechanical, electrical and pneumatic integration.
- After a special modification, the light and small products can also be packed;
- It has advantages of speed and connection compared with the common side feed machine.
- The sealing line is solid without cracking by cutting and anti- sticking by using special blade.
- Two groups of imported level photoelectric devices are used to accurate positioning;
- The imported conveyor belt is durable and the conveyor speed is controlled by frequency inverter.

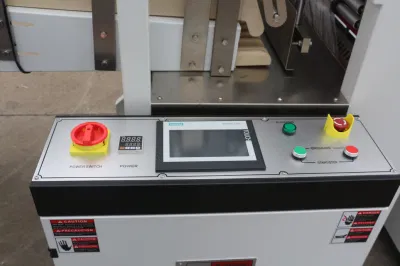

- The user-friendly control box makes the operator's operation much easier;
- The pressure device equipped behind the sealing makes sure the position is stable even for the light product during the procession.
- SF-6040E shrink tunnel adopts the imported double recycling motor; so that the hot air in the tunnel is even to have more beautiful shrink effect.
- The outside security cover can be installed according to the customer requirement.
- The chain conveyor made of solid steel covered with imported silicone tube is very durable. Besides the chain conveyor, we also have different conveyors according the products shape and material.
- The frequency inverter controls the speed of the conveyor.
- The separate control box makes sure the electrical components have good ventilation.
- This machine is mainly applied to masking tapes sleeve shrink wrapping.
| Model | GH-6030AES | SF-6040E |
| Power | 2kw | 18kw |
| Power Supply | AC 220V 1/3 PH 50/60Hz | AC 380V 3 PH 50/60Hz |
| Applicable Tape Size | W24mm in 10pcs; W36mm in 6pcs; W48mm in 6pcs; | W24mm in 10pcs; W36mm in 6pcs; W48mm in 6pcs; |
| Tunnel Size L×W×H | / | 1800×600×400mm |
| Blade Length | 670mm | / |
| Air Temperature | 0-300ºC | 0-300ºC |
| Table Height | 825±25mm | 825±25mm |
| Packing Speed | 15m/min. | 0-15m/min |
| External Air Source | 6-8kg/cm2 | / |
| Shrink Film | PE | PE |
| Machine Size L×W×H | 2160*1333*1703mm | 2800*950*1750mm |
| Crate Size L×W×H | 2210*1383*1853mm | 2850*1000*1900mm |
| G./N. Weight | 620/580kgs | 625/565kgs |
Professional manufacturer of shrinking wrapping machine Shanghai KUKO Packing Machinery Co., Ltd. was established in 2004. It's a branch company of Shanghai KUKO Packing Machinery Co,.,Ltd. Which is located in the Zhouzhuang Industrial Park in Kunshan, Chinese first water town 40 kilometers away from Shanghai. The purpose is to help customers improve work efficiency, save manpower and material resources, and reduce enterprise production costs. At present, the company mainly focuses on the product series of automatic sealing and cutting film shrink packaging machines. The main products are divided into more than 200 series of product types such as low, medium and high speed. It has successfully provided complete shrink packaging solutions for various industries. With the trust of our customers and accumulated rich industry experience, we are a veritable professional and well-known supplier with the most international competitiveness in the shrink packaging machinery industry. We firmly believe that people who want clothes and goods need hardcover. KUKO products adhere to the five leading tenets of ingenious design, mechanization of production, modularization of assembly, standardization of debugging, and foolish maintenance!
KUKO's entrepreneurial spirit is: integrity first. The company advocates the principle of user first, all equipment design is based on the interests of customers, and constantly absorbs customer feedback, and improves company products based on their opinions; at the same time, if your company has special requirements, our company is also willing to customize for you Satisfactory mechanical products. All products of our company provide one-year free warranty period and lifetime maintenance service of the machine. KUKO company also provides innovative technology, ingenious quality, intelligent packaging products, solutions and services to fully assist customers, enterprises and employees to achieve their dreams.
1. Who is KUKO MACHINERY?
Shanghai Kuko Packing Machinery Co.,Ltd locates on No.408, Tianjiu Road, Songjiang District, Shanghai, 201603, China, which specializes in manufacturing Hooding Machine & Shrink Wrapping Machine for 18 years.2. What are the terms of payments?
We accept L/C,T/T,Western Union,Money Gram etc.
3. How long is your warranty? What does your After-sales Service include?
The machine warranty is one year. We provide professional machine solution and machine layout design. We will delivery machine on time after debugging with wooden packages. We offer professional installation, engineer technical support online and spare parts service.
4. What's your delivery time?
In general,the delivery time is within 15-90 days after payment. We'll make the delivery as soon as possiable with the guaranteed quality.
5. Do you have Mechanical Quality Certification?
Yes. We have CE,SGS,ISO 9001:2015 Certificates.
6. If it is easy to operate of your machine?
Under the condition of ensuring safe transportation, we will not disassemble the machine very much, so that it can be easier to install and debug after you receive our equipment.Meanwhile We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
7. How does your factory do regarding quality control?
We have well-trained and professional workers and strict QC system in each production link. And each product has to be 100% inspected before shipment.
