Basic Info.
Model NO.
OSD231C
Max Vacuum
≥0.09MPa(680mmhg)
Flow Rate
Terminal≥20L/Min, Exit ≥30L/Min
Application
Artificial Abortion, Pus, Blood and Sputum
Suction Rate
≥25L/Min(35L Pump Suitable)
Noise
≤55dB
Pump Structure
Diaphragm Type
Working Type
Intermittent Loading,Continuous Operation
G.W.
26kg
Power Voltage
AC220V±10% 50Hz
Transport Package
Carton
Specification
47*44*89cm
Trademark
Visionstar
Origin
China
HS Code
9018909919
Production Capacity
100 Unit/Week
Product Description

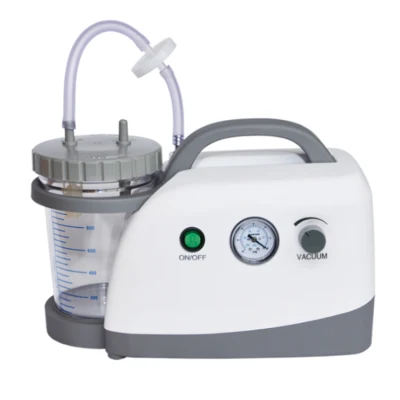

OSD231C Medical Apparatus Electrical Mobile Aspirator Air Vacuum Pump Surgical Electric Suction Machine
Features :
1. OSD231C, OSD231D with new new shape, and have movable medical suction device. They are used for operations and wards for taking out puts, blood, sputum and other thick liquid from human body.
2. OSD231C: all plastic enclosure which is formed in one piece.
3. Imported membrane pump with longer life
4. Low noise and maintenance-free
5. With overflow protection unit to prevent liquid from getting into pump body
6. Be equipped with hand switch and foot switch
Technical Parameter:
| Model | OSD231C,OSD231D |
| Power supply | 220V±10% 50Hz±2% |
| Air pumping efficiency | ≥40L/min |
| Adjustment range of negative pressure | 0.013~0.09MPa |
| Noise level | ≤65dB |
| Input power | 400VA |
| Liquid vessel | 2500ml*2(glass bottle) |
