Basic Info.
Model NO.
LJ-200
Color
as Your Requirement
Delivery Time
Within 30 Working Days After Receiving The Deposit
Transport Package
Standard Export Packing
Specification
production capacity: 450kg/h
Trademark
BOJIA
Origin
Qingdao, China
HS Code
84778000
Production Capacity
50sets Per Month
Product Description
Reclaimed Rubber Straining Machine, Rubber Strainer
I. Application
Rubber strainer machine is mainly used to filter natural rubber and reclaimed rubber material , it is suitable for rubber manufacturers filter rubber shoes uppers and inner tube , rubber hose , rubber , etc ., at the same time , also applies to the silicone , rubber filtering , the piece , etc.
II. Feature:
(1) Screw form double threads, equal pitch and depth
(2) Match a single head or cutter head with hydraulic tightening
(3) Jacketed type barrel can be cooled for cooling the rubbers effectively.
(4) Smoothly running and high output.
(5) Equipped with die-head auto opening system when electric power is cut off.
III. Technical parameter
| Items/Model | XJL-150A | XJL-200 | XJL-250 |
| Screw diameter (mm) | 150 | 200 | 250 |
| Max. screw speed (r/min) | 41.6 | 47.2 | 40 |
| Drive motor model | Y280M-8 | Y315-6 | Y315L1-6 |
| Capacity (kw) | 45 | 90 | 110 |
| Cutting device speed (r/min) | 16 | 16.8 | 11 |
| Steam pressure (MPa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Cooling water pressure (MPa) | 0.2-0.3 | 0.2 | 02. |
| Max. production capacity (kg/h) | 400 | 800 | 1600 |
| Size (mm) | 2873*1220*1377 | 4248*1995*1493 | 4440*1180*1650 |
| Quantity (kg) | 6500 | 8600 | 9000 |

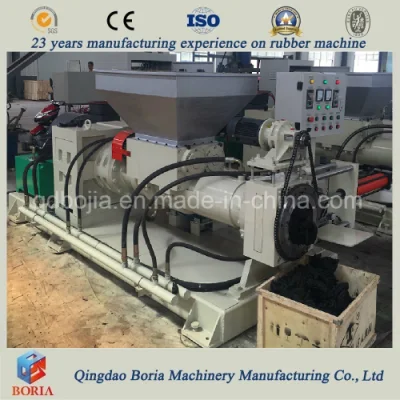

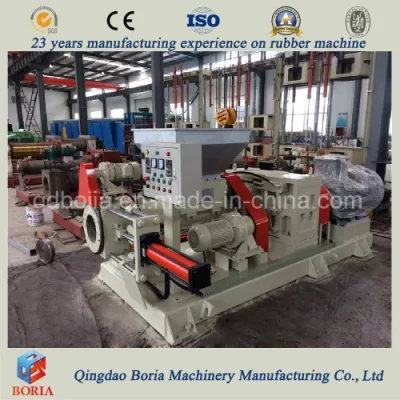

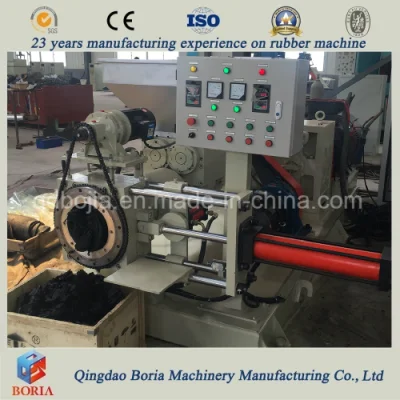

IV. Picture show
V. Our machine list
Our company professional manufacture rubber vulcanizing press (frame type,four column type,lab press and so on), rubber mixing mill, batch off cooler, rubber extruder, rubber strip making machine and tire recycling equipment.
