Basic Info.
Product Description

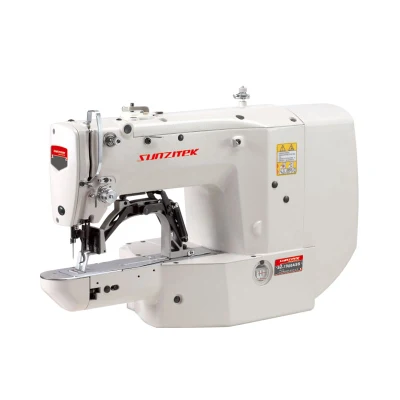

High speed lockstitch bartacking sewing machines.
Main Features & Specifications
1.High-performance bartacking machine has been improved for space-saving design, ease of operation, and higher quality.
2.Low-tension sewing can be performed. Furthermore, reliable thread trimming is ensured, leading to further improved seam quality.
3.Great reduction of the pedaling pressure required has been achieved, helping reduce operator fatigue.
Model | SZ-1850 |
Max. speed | 2,300sti/min |
Needle Bar Stroke | 41.2 |
Max. lift of the work clamp foot | 17mm |
Feed mechanism Stitch adjusting system | Material feed cam control system Provided with a nut-fixed feed adjusting lever |
Thread trimming system | Thread spreader interlocked with main shaft and thread trimmer interlocked with lifter |
Wiper | Interlocked with lifter |
Hook | Standard shuttle hook |
Lubrication | Centralized oil wick lubrication |
Motor | Single-phase/3-phase 200 W (1/4 HP) induction motor |
Weight of the machine head | 42.5 kg |
![Sz-1850 High Speed Lockstitch Belt Loop Bar Tacking Industrial Sewing Machine](http://img6.grofrom.com/www.taxiasewshop.com/226f3j00amBLJGYWHHqz/Sz-1850-High-Speed-Lockstitch-Belt-Loop-Bar-Tacking-Industrial-Sewing-Machine.webp)
1.Delivery time:10-15 days if the goods are in stock,or 15-20 days if the goods are not in stock,need production,also according to the order quantity.
2.Payment terms:30% T/T in advance,the balance to be paid by B/L copy.If amount is less then USD10000,T/T 100% in advance is required.
3.OEM service:we accept OEM but need to meet below conditions:1.brand not being registered in china,2.provide your band registration certification,3.order amount is more then USD30000.
4.Warranty:1 year for mechanic parts and 1 to 3 years for electronic parts like motor,PCB board,depends on the electronic compoments suppliers.
5.Your inquiry related to our products or prices will be replied within 48 hours
6.Well-trained and experienced staffs to answer all your inquriy in fluent English.
7.Inspect the goods before sending shipment,Take pic for customer to confirm before your goods packed.
8.We respect your feedback after receive the goods
9.Protection of your sales area,ideas of design and all your private information.
