SZGH Small Universal Milling Machines For Metal Process- SZGH-650 (matched CNC Controller Model SZGH-CNC1000MDb-3)
It is suitable for processing copper, iron, aluminum and stainless steel workpieces within 600mmX500mm.The operation is compatible with the general machining center in the market, and supports drilling, tapping, milling, engraving and other functions.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing stainless steel parts with tapping within 30mm and drilling within 20mm.Due to the small footprint, it is convenient for one person to manage multiple machines, improving per capita output efficiency and reducing processing costs.
Standard Data
| Project | Unit | Standard value | Max value | |
| Processing capacity | Maximum drilling diameter | mm | Aluminum φ35/ Steel φ30 | Aluminum φ40/ Steel 35 |
| Max. Tapping Diameter | mm | Aluminum m25/ Steel m18 | Aluminum m25/ Steel m20 | |
Max. milling cutter diameter | mm | φ60 | φ100 | |
| Max. Spindle speed | rpm | 6000 | Optional 24,000-rpm motorized spindle | |
| Handle Type | - | BT40 | Optional BT30 | |
| Magazine capacity | - | 10-station servo tool magazine | 12 station tool magazine | |
| Repeatability | mm | 0.01 | - | |
| Surface engraving accuracy | mm | ±0.02 | optional ±0.01 | |
| workbench | Distance from table surface to spindle end | mm | Minimum 150 Maximum 450 | - |
| Effective stroke of working surface | mm | 600*500 | - | |
| Travels | X-axis effective travel | mm | 500 | - |
| Y-axis effective travel | mm | 600 | - | |
| Z-axis effective travel | mm | 300 | - | |
| Feed | X-axis rapid traverse | m/min | 25 | 30 |
| Y-axis rapid traverse | m/min | 25 | 30 | |
| Z-axis rapid traverse | m/min | 20 | 25 | |
| Various cutting suggested speeds | m/min | 1000 | - | |
| Spindle | Max.Spindle Speed | rpm | 6000 | Optional 24000electric spindle |
| Spindle Motor Power | kW | 3.7 | Optional 5.5kw | |
| Spindle type | - | mechanical spindle | Optional electric spindle | |
| Spindle taper | - | BT40 | Optional BT30 | |
| Dimensions | Dimensions | mm | 1650*1800*2450 | - |
| Total Weight | kg | 2900 | - | |
| Machine tool specifications and component items | Specification | Standard | Optional | |
| Part Specifications | Screw | 32mm | Taiwan precision p grade | - |
| Guide rail | 30mm | Taiwan Precision C3 Grade | - | |
| Spindle | BT40 | Yashu self-made | other | |
| CNC Control | - | SZGH | SZGH | |
| Feed servo | X.Y1.2kw&1.5kW | SZGH | SZGH | |
| Spindle servo motor | 3.7kW | SZGH | SZGH | |
| Machine specifications | Tool magazine | 10/12 handle | SZGH | - |
| Base form | 1200kg | Heavy-duty anti-deformation patented base | - | |
| The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail. | ||||
Matched Controller: SZGH-CNC1000MDb-3
Support ATC function!!(Linear Tool &bamboo/umbrella Magazine)!
1) The three axes of X,Y,Z control, three axes linkage movement.
2) 2ms interpolation cycle,1um precision.
3) 5MHz Output Pulse Frequency, Maximum speed: 300m/min,Feeding speed: 150m/min.
4) Multiple function,it can realize the drilling/boring,roughing of roun groove/rectangle groove,finishing of full circle/rectangle,continous drilling of straight line/rectangle/arc etc.
5) Support Macro function, PLC ladder function, and 3 D teaching function, ATC.
6) Memory Capacity: 128MB,User Store Room: 110MB.
7) 8.4 inches(800*600) real color LCD displayer.
8) Support Metric system/Inch System,with function of auto charfering.
9) Display in Chinese and English,which can be selected by parameter.
10) With USB interface,support USB file processing,software upgrade.
11) DNC in high speed,realize part program real-time transmission processing.
12) Analog voltage output of 0V~10V in two channels,support two-spindle control.
13) Support external MPG.
14) Basic I/Os: 56*40, 40*32 can be edited freely.
15) Built-in standard PLC program,and can be customized edited according to customer's requirements.
16) High anti-jamming switch power(220VAC -> DC 24V&5V)

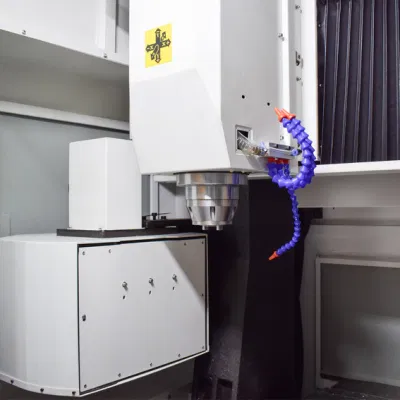

Machine Tool
 |  |  |
| The high-rigidity cast base and gantry provide confidence of perfect stability and high precision when operating. | 2.6 kW, 5000 RPM spindle motor with BT30 shank, equipped with a 6-station linear pneumatic tool changer, which can change tools more efficiently. | The drive structure uses high-precision screw guides and a fully enclosed protective cover for three axes prevents cutting fluid and iron chips from entering the screw guides during machining, reducing the workload of maintenance. |
 |  |  |
| Carousel type tools changer, tooling number up to 8 pcs, automatic exchange. | Size 500* 400mm T-slot table for handling the workpiece up to 200kg. | Equips with auto lubrication system to ensure transmission system smooth and long-term running. |
Applications
1. Metal processing: SZGH-540 vertical milling machine is suitable for metal processing field, can milling, drilling, boring, and other process operations. It is widely used in mold manufacturing, aerospace, automobile manufacturing, and other industries.
2. Parts processing: SZGH-540 vertical milling machine can be used to process various parts, including precision parts, complex structure parts, etc. It provides high-precision machining capabilities to meet the needs of parts processing.
3. Education: SZGH-540 vertical milling machine can also be used in the field of education and training. It can be used as a teaching experiment equipment to help students learn and understand CNC machining technology, and cultivate.
 |  |
