Basic Info.
Model NO.
VSV23-10
Pressure
Ordinary Pressure
Valve Structure
Direct-Acting Piston Structure
Power Supply
DC Solenoid Valve
Usage
Safety, Emptying, Drain, Temperature Control, Flow Control
Standard
DIN
Application
Industrial Usage, Water Industrial Usage, Household Usage
Product Name
Micro Solenoid Valve for Ventilators and Oxygen Co
Orifice
10mm
Acting Type
Direct
Lubrication
No
Flow Rate
16nl/Min
Response Time
Less Than 8 Sec
Voltage
12V, 24V, 220V
IP Class
IP50
Life Time
More Than 100 Millions Times
Coil Type
Vertical Type, Horizontal Type, Pin Type
Working Frequency
30Hz
Replace Brand
Fim Valvole
Working Pressure
0-7 Bar
Working Temperature
-5~50 Degree
Warranty
1 Year
Transport Package
Inner Box, Outer Carton...Pallet
Specification
CE, ROHS, SGS. ISO9001: 2000
Trademark
VPC Pneumatic
Origin
China
HS Code
8481804090
Production Capacity
500000000000000000000000000000PCS/Year
Product Description

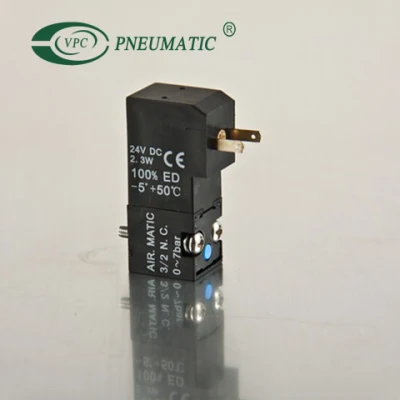

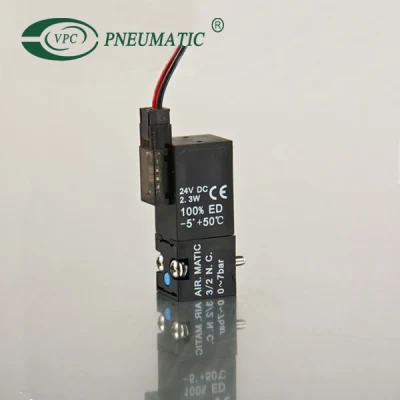

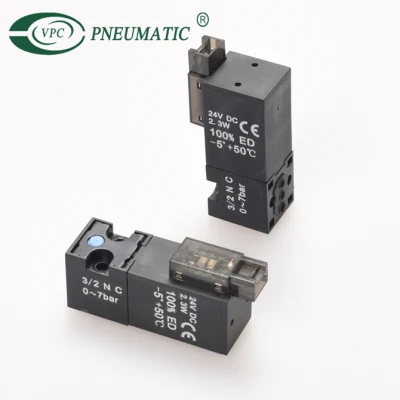

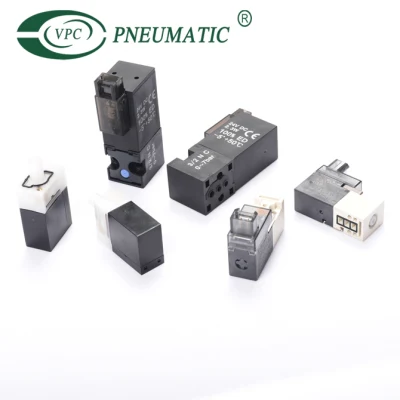

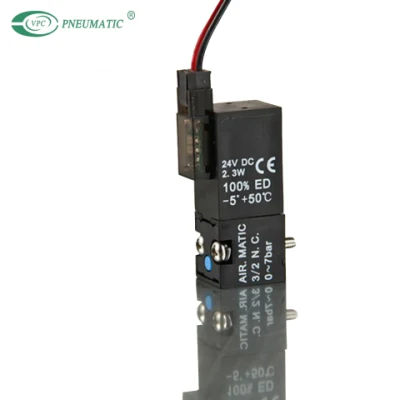

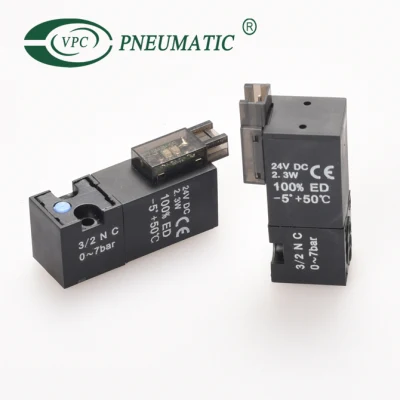

1. Micro Solenoid Valves are widely used for precise and reliable control of liquids and gases in medical
equipments, analytical instrumentation, pneumatics, textile, automotive and water curtains. They allow fluid flow
into different paths from one or more sources. It not only has a micro size,but it's very quiet when it works.
2. Low power consumption, fast repsonse,import oils seals with longer sevice life.
3. Coils with DIN connection or flying leads.
4. Custom designs are available
5. Good replace Itlay FIM Valvole
Industry applications:
- Pneumatics (pilots for valves or modular valves, vacuum pumps, etc.)
- Textile (Socks Hosiery knitting machines, carpet, rug making machines, spoolers, winders)
- Semiconductors (Pick & Place, Chip sorting machines)
- Medical (Oxygen concentrators, ventilators)
- Automotive (Wiper systems, Motorcycle air suspensions, etc.)
- Chemical (Gas analysers, environmental sampling)
- Water curtains (in luxury hotels, etc.)
- Dental equipment (dentist chairs, pneumatic drilling, water dispensing)
| Model | VSV10-V VSV10-H VSV10-L |
| Operation Type | 3/2 way |
| Working Medium | Filtered Air/Inertgases |
| Ambient Temperature | -10~75 ºC |
| Working Pressure | 0-7bar |
| Orifice size | 0.7mm, 1.0mm, 1.2mm |
| Wiring/Connector | L/M type |
| Stand Voltage | DC24V/12V |
| Power | 1W/1.2W double power |
| Insulation | H Class |
| Service life | > 50 million times |
| Instruction light | LED |
| Operating Frequency | >30Hz |
| Operating Voltage Tolerance | +/- 10% |
| Response Time | 6-8ms |
| Protective Structures | Dust-proof |
