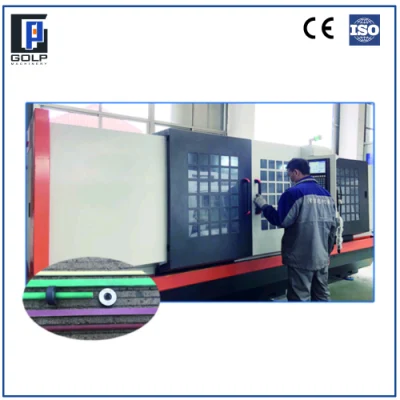

High Precision Thread Whirling Cutter for Swing Cylinder Nut

Get high precision thread whirling cutters for swing cylinder nuts from our factory. We offer top-quality tools for your manufacturing needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
GRP
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Machine Length Limit of Workpiece
1600mm
Number of Machine Control Axes
a, C, X, Z Axis Four-Axis Triple Linkage
Spindle Center Height
245mm
Spindle Speed
0-800r/Min
Machine Tool External Dimensions
4400X2000X2200
Automatic Type
Automatic
Transport Package
Wooden Case
Specification
standard
Trademark
GOLP
Origin
China
Production Capacity
400 Piece/Year

Product Description

Cost-effective service without worries:
1. Cost-effective: the price of the equipment is only slightly higher than the price of a CNC lathe of the same grade, which also includes the design of tooling such as fixtures and jigs;
2. Worry-free service: The whole machine is a turnkey project for door-to-door training, which eliminates unnecessary troubles such as self-transformation;
3. Technical backing: the company provides strong technical support later, so that customers have no worries.


High Precision Thread Whirling Cutter for Swing Cylinder Nut High Precision Thread Whirling Cutter for Swing Cylinder Nut

1. Our CNC rotary milling machine tools are all 3-axis linkage CNC rotary milling machine tools;
2. CNC rotary milling machine spindle with high indexing and positioning mechanism, and can hold the lock, the spindle adopts servo spindle unit, can realize the turning and milling composite function;
3. CNC rotary milling machine tool can index, position, lock, and remove residual teeth with high precision, and the machine tool has added a lot of customized contents, which is not available in ordinary CNC lathes;
4. Machine tool light machine: we use domestic well-known manufacturers, good quality products. Unlike some manufacturers use the light machine of small machine tool factories in Zhejiang or Anhui or Shandong. Machine tool screw: small machine tool screw, general machine tool screw using domestic well-known brands and imported brands Screws;
5. drive motor: spindle servo unit generally uses the mainstream domestic manufacturers products. Frequency converter: generally use the domestic first-line brands;
6. operating system: with a simpler operating interface, friendly human-machine interface, full Chinese content, easy to operate;
7. System memory: system memory is generally larger than the above mainstream systems, can perfectly execute large workpiece processing programs, or software-generated programs;
8. Control points: The system has more than 60 control points, which is convenient for adding various configurations or executing various external commands, in addition to common commands such as control of cyclone milling, machine spindle holding brake, tailstock advance and retreat, locking, cyclone milling air valve, etc., a large number of points are also reserved for In addition to common commands such as control of rotary milling, machine spindle holding, tailstock retraction, locking, rotary milling air valve, etc., a large number of points are reserved for seamless connection with robots or manipulators;
9. Programming: The system is embedded with a special programming module for rotary milling, which can realize parametric background programming for various common threads such as multi-head worm, screw or other threads, and even the residual teeth of threads can be programmed automatically, reducing the technical ability of workers;
10.System warranty: Since the system is a long-term cooperative custom manufacturer, the system enjoys a two-year warranty, which is equivalent to a one-year extended warranty compared with ordinary systems.

High Precision Thread Whirling Cutter for Swing Cylinder Nut
NO. Item Specific parameters
1 Number of machine control axes A, C, X, Z axis four-axis triple linkage, A axis for (cyclone milling power) system frequency control
2 Spindle clearance elimination device CNC control cylinder holding or loosening (or precision reducer directly connected)
3 Spindle (C-axis) control type Position / speed
4 X/Z control type Position control
5 Clamping type Three-jaw self-centering chuck manual control (optional hydraulic and pneumatic control)
6 Chuck diameter 320mm (12") (optional other sizes)
7 Spindle center height 245mm
8 Spindle speed 0 - 800r/min
9 Maximum rotation diameter of the machine over the trailing plate 480mm
10 Max. short distance (not over the drag plate) of the machine 800mm
11 Machine length limit of workpiece 1600mm
12 Rotary axis accuracy ≤2.5″
13 Repeatable positioning accuracy of rotary axis ≤5″
14 Surface roughness ≤Ra1.6
15 Positioning accuracy of each linear axis ≤0.015mm
16 Repeatability of each linear axis ≤0.03mm
17 Machine system and drive motor manufacturer (Customized four-axis system for cyclone milling, optional Siemens and Frank systems)
18 Spindle adopts motor Servo spindle unit
19 Encoder High-split gear encoder or built-in encoder
20 Frequency converter Domestic well-known brands such as INVISION
21 Component brand Domestic well-known brands such as Chint, Delixi, etc. (optional international well-known brands such as Siemens, etc.)
22 Total power of the equipment 22KW
23 Machine tool light machine manufacturer Domestic well-known brands such as Yunnan Machine Tool Factory, Anyang Machine Tool Factory, etc.
24 Machine tool screw selection manufacturers Domestic well-known brands such as Taiwan Shangyin, South Technology, Hanjiang, Jining Botte, etc.
25 Tailstock control form Ordinary (optional system and foot pedal control in and out, system control locking, loosening the sleeve)
26 Machine protection Double door semi-protection , system installation sliding door, equipped with external receiver wheel (optional full protection)
27 Machine tool external dimensions 4400x2000x2200
28 Machine tool net weight (concept) 4800KG

High Precision Thread Whirling Cutter for Swing Cylinder Nut
High Precision Thread Whirling Cutter for Swing Cylinder Nut
High Precision Thread Whirling Cutter for Swing Cylinder Nut
High Precision Thread Whirling Cutter for Swing Cylinder Nut
High Precision Thread Whirling Cutter for Swing Cylinder Nut
High Precision Thread Whirling Cutter for Swing Cylinder Nut
High Precision Thread Whirling Cutter for Swing Cylinder Nut


High Precision Thread Whirling Cutter for Swing Cylinder Nut
High Precision Thread Whirling Cutter for Swing Cylinder Nut
High Precision Thread Whirling Cutter for Swing Cylinder Nut
High Precision Thread Whirling Cutter for Swing Cylinder Nut
High Precision Thread Whirling Cutter for Swing Cylinder Nut
High Precision Thread Whirling Cutter for Swing Cylinder Nut
High Precision Thread Whirling Cutter for Swing Cylinder Nut


High Precision Thread Whirling Cutter for Swing Cylinder Nut

WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry.  The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
High Precision Thread Whirling Cutter for Swing Cylinder Nut

High Precision Thread Whirling Cutter for Swing Cylinder Nut Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.

Q:How long is the product warranty?
A: 24 months

Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.

Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.

Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.

Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.
